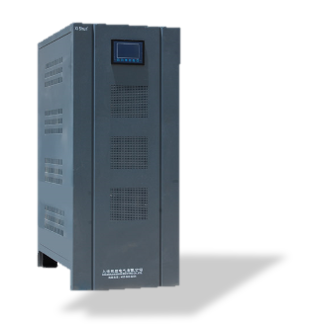

Description
By making the integrated circuit control several thyristor voltage zero-crossing on and off in a specific order to change the size and polarity of the compensation voltage, it is a perfect combination of thyristor AC switch technology and transformer technology. Using high-power thyristors (silicon controlled rectifiers) instead of machinery and carbon brushes to control voltage regulation, the capacity can reach 3000KVA, the maximum compensation range can reach ±50%, and the efficiency can reach more than 99%. It is leading the development direction of high-power power regulated power supplies. energy-saving green environmental protection products. Equipped with all power protection functions, it realizes non-contact voltage regulation; it is non-polluting, and can maintain good performance under various harsh power grids and complex loads for more than 100,000 hours of continuous trouble-free operation, realizing long-term maintenance-free. It has the advantages of super high efficiency, super long service life, super stability and adaptability.
| Enter | voltage range | Three-phase voltage 304V-456V |
|---|---|---|
| frequency voltage | 50/60Hz | |
| Output | Rated voltage | Phase voltage 220V, 230V; line voltage 380V, 400V |
| Voltage regulation accuracy | ±(1-5%) optional (regular ±2%) | |
| Response time | ≤30 s | |
| Wave distortion | none | |
| Efficiency | ≥99% | |
| Protective function | Lack of phase | With automatic cut-off |
| overload | Electronic detection, cut off the transmission within 3 minutes of overload | |
| overcurrent | Double protection of electronic detection and circuit breaker | |
| Short circuit | Double protection of electronic detection and circuit breaker | |
| bypass | Manual or continuous automatic bypass |
| Specification | Capacity (KVA) | Input voltage (V) | Output voltage (V) | Rated current (A) | Weight(KG) | Dimensions (MM) |
|---|---|---|---|---|---|---|
| ZSBW-10 | 10 | three phase 304V-456V | three phase 380V±2% | 15 | 140 | 500*500*1000 |
| ZSBW-20 | 20 | 30 | 160 | |||
| ZSBW-30 | 30 | 46 | 180 | |||
| ZSBW-50 | 50 | 76 | 195 | 600*600*1300 | ||
| ZSBW-75 | 75 | 114 | 315 | 660*660*1500 | ||
| ZSBW-100 | 100 | 152 | 330 | |||
| ZSBW-150 | 150 | 228 | 450 | 700*700*1600 | ||
| ZSBW-225 | 225 | 342 | 530 | |||
| ZSBW-320 | 320 | 486 | 640 | 1100*1000*2200 | ||
| ZSBW-400 | 400 | 608 | 750 | |||
| ZSBW-500 | 500 | 760 | 870 | 1200*1000*2200 | ||
| ZSBW-600 | 600 | 912 | 980 | |||
| ZDBW-5 | ５ | Single phase 176V-264V | Single phase 220V±2% | 23 | 30 | 350*600*500 |
| ZDBW-10 | 10 | 45 | 50 | 350*600*600 | ||
| ZDBW-20 | 20 | 91 | 80 | |||
| ZDBW-30 | 30 | 136 | 100 |
